Zigbee Tuya Smart Home Light illuminance Sensor Light Brightness Detection Detection Sensor DIY Linked Curtain IP67 Waterproof and Dustproof

Brand Name:	SMATRUL
Model Number:	MG-GZ100-W-ZIG
MOQ:	5PCS
Price:	5.99USD,5-500,pcs
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE RoHS FCC

Supply Ability:

500,PCS,10 days

Product Description

【Core Functions】

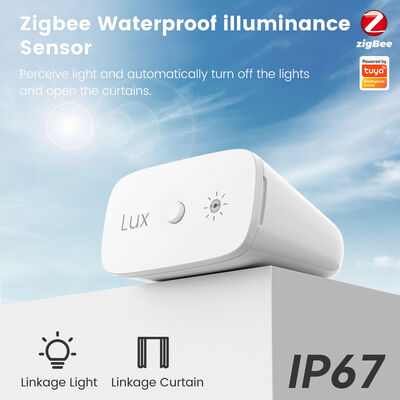

--1. Light Detection: Accurately detects ambient brightness in real time.

--2. Automatic Scene Trigger: Automatically turns off lights and opens curtains when light is detected.

--3. Real-time Sensing: Continuously monitors changes in light intensity to maintain optimal indoor lighting conditions.

【Key Features】

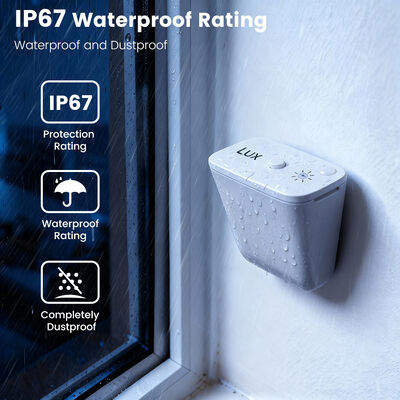

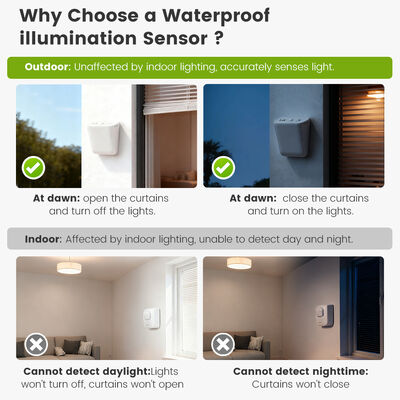

--1. IP67 Waterproof Design: Unlike ordinary indoor light sensors, its waterproof design is specifically designed for outdoor installation, providing accurate light detection for smart curtains or lighting linkage.

--2. Smart Linkage: Can be linked with smart devices such as lights and curtains to create automated scenes.

--3. Low Battery Alert: Sends notifications when the battery is low.

--Compact Design: Simple and elegant appearance, easily blends into any space.

【Application Scenarios】
--1. Smart Lighting Control: Automatically turns lights on/off based on natural light intensity.

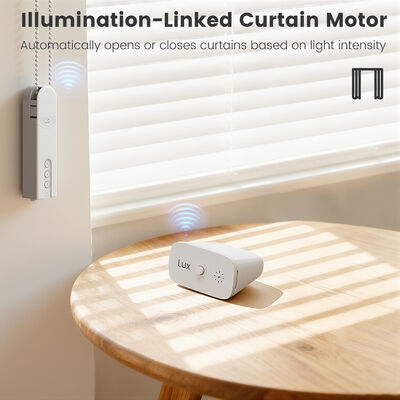

--2. Curtain Automation: Links with smart curtain motors to open or close curtains based on lighting conditions.

--3. Energy Saving: Turns off lights when natural light is sufficient, reducing unnecessary power consumption.

--4. Outdoor Installation: High waterproof rating, suitable for balconies, gardens, or outdoor walkways.

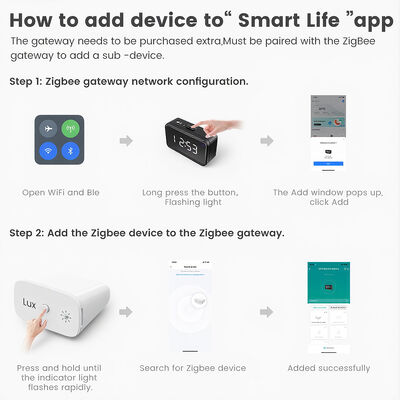

【Requirements】 Requires a Zigbee gateway: This product is a Zigbee sub-device and must be used with the Tuya Zigbee Gateway (sold separately). This product cannot directly connect to Wi-Fi or mobile phones.

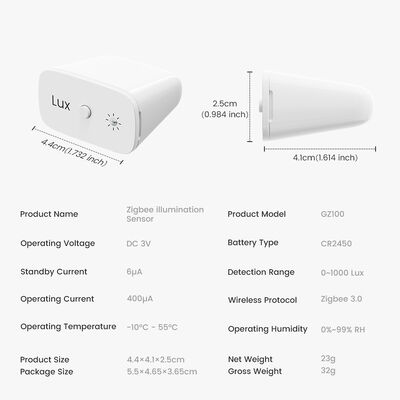

Technical Specifications:

Model: GZ100
Wireless Protocol: Zigbee 3.0
Operating Voltage: DC 3V
Battery Type: CR2450
Standby Current: 6µA
Detection Range: 0–1000 lux
Detection Angle: 120°
Waterproof Rating: IP67
Operating Temperature: -10°C to 55°C
Operating Humidity: 0–95% RH
Net Weight: 23g
Gross Weight: 32g
